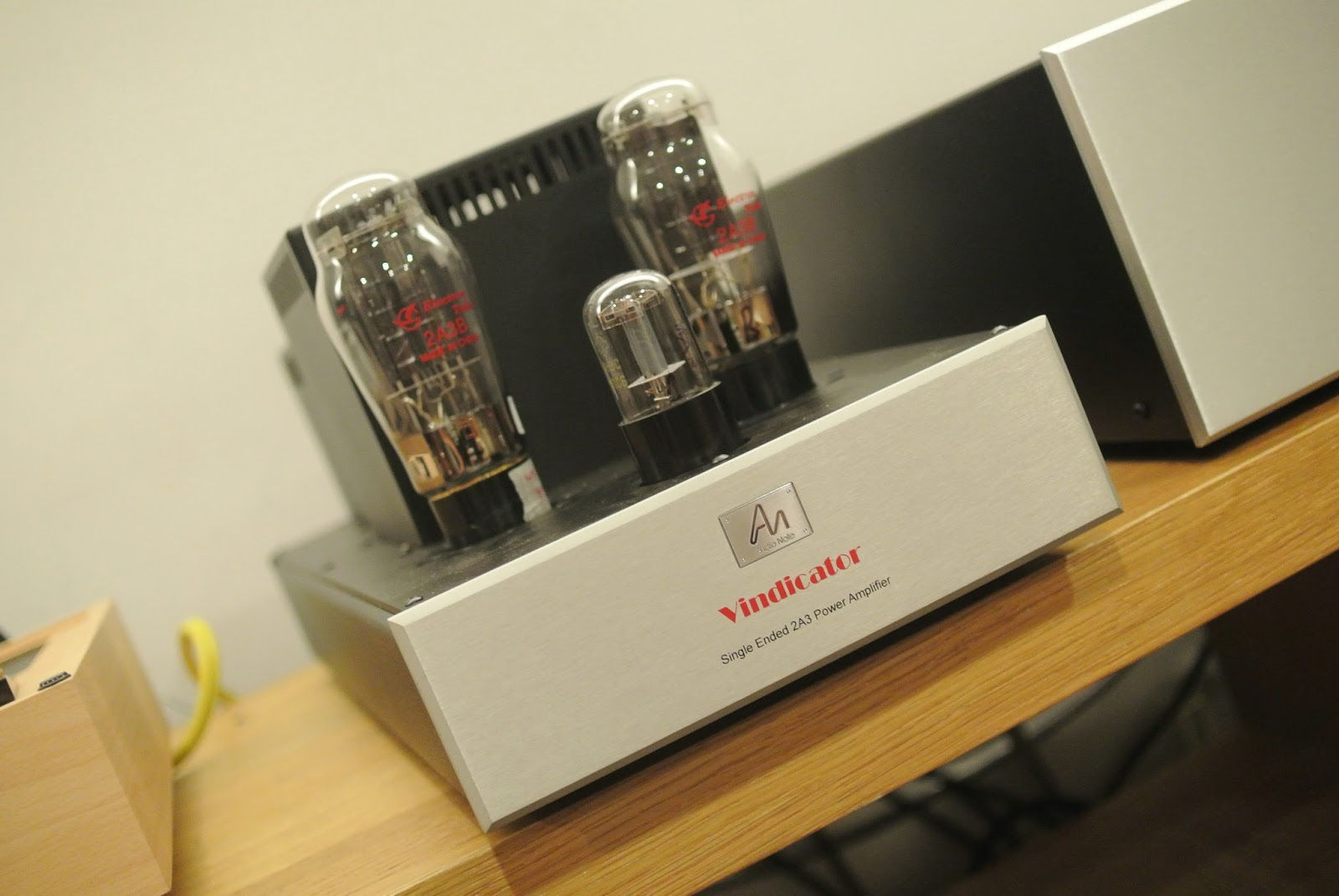

Vindicator (Silver + Signature)

Vindicator (Silver + Signature)

The VINDICATOR is a Pure Class A Singled Ended valve amplifier that uses the highly regarded 2A3 triode valve, producing a level of performance that is radically superior to the vast majority of current designs.



It has been specifically engineered for sonic performance rather than technical specification, and fulfils all Audio Note (UK) Level 3 criteria:

  • Pure Class A operation
  • Zero Negative Feedback
  • Single Ended Output Stage
  • Valve Rectification
  • Directly Heated Triode operation
  • Materials and component quality



The Silver version builds upon the already superb performance of the standard VINDICATOR, and features the following additions:

  • Audio Note Copper Foil signal capacitors
  • Audio Note 2W Tantalum film resistors



The Silver Signature version additionally offers:



  • Audio Note IHiB Double C-core output transformers.
  •
  • FACTS

    INPUT IMPEDANCE

    100k Ohm (Line)

    INPUT SENSITIVITY

    250mV for full output

    MAXIMUM OUTPUT

    3.5 watts RMS per channel into 4 or 8 Ohm loads

    CHANNEL BALANCE

    +/- 0.3dB

    VALVE COMPLEMENT (LINE)

    1 x 6SL7GT 2 x 2A3

    1 x 5R4GY

    UNIT WEIGHT

    20KG

    SHIPPING WEIGHT (ORIGINAL PACKAGING)

    30KG

    UNIT DIMENSIONS

    195mm (h) x 205mm (w) x 500mm (d)

    SHIPPING DIMENSIONS (ORIGINAL PACKAGING)

    295mm (h) x 320mm (w) x 610mm (d)



    MAINS INPUT MAINS FUSE

    2A Anti Surge (AC 100-120V ) 1.2A Anti Surge (AC 220-240V) 50/60 Hz

    400ma (Internal HT)

    MAX. POWER CONSUMPTION

    270Watts
