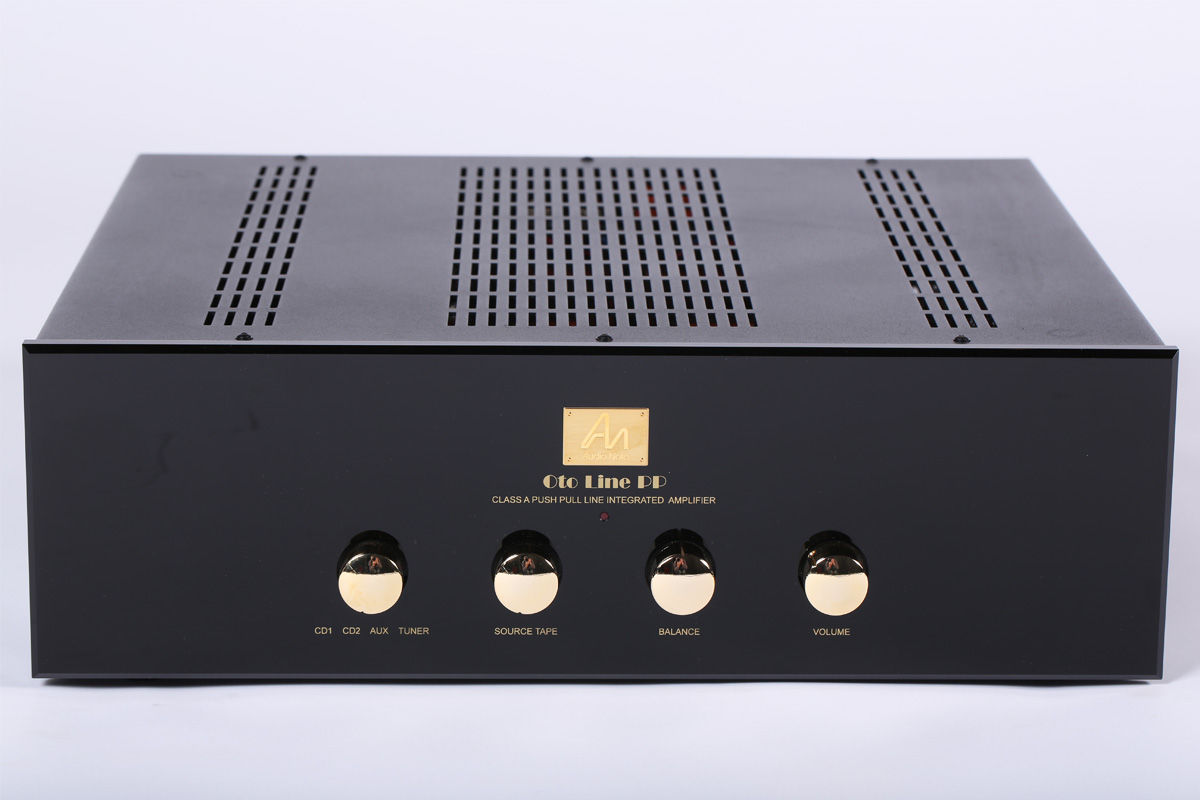

OTO PP Line / Phono

OTO PP Line / Phono

The Audio Note OTO PP is Audio Note’s entry level amplifier running in push-pull pentode mode.



While Audio Note is famous for those ultra expensive Ongaku’s, it may be the OTO that most consumers will be introduced to first. The OTO is, if not already, a modern day classic amplifier. To be viewed a classic in virtually any arena, a pre-requisite is for it to be able to stand the test of time.



Can your product still hold up against newcomers with new designs and ideas? The OTO SE has been selling for 16 years since 1992, and it continues to beguile, amaze, and sneak into the hearts of owners for its sheer beauty at replaying recorded material.



The Phono version come with a tubed RIAA amplifiers, while the Signature versions use more sophisticated wiring, components and transformers.



Indeed, in a real sense the OTO is a different animal than a lot of integrateds that are designed as a cost-cutting measure at the design stage. This amplifier is in fact, dedicated preamp and power amp separates sharing one bigger box. Indeed, if you look at the innards of the M1 and P1, you can see very similar layouts.



  • FACTS

    INPUT IMPEDANCE

    100k Ohm 47k Ohm

    300mV 3mV

    INPUT SENSITIVITY

    220mV (Line)

    3mV (Phono)

    for full output

    MAXIMUM OUTPUT

    9 watts RMS per channel into 4 or 8 Ohm loads

    CHANNEL BALANCE

    +/- 0.3dB

    VALVE COMPLEMENT (LINE)

    1 x 5670 2 x 6UA6 4 x 6005

    VALVE COMPLEMENT (PHONO)

    1 x ECC83 1 x 6DJ8

    UNIT WEIGHT

    12KG

    SHIPPING WEIGHT (ORIGINAL PACKAGING)

    14KG

    UNIT DIMENSIONS

    140mm (h) x 440mm (w) x 410mm (d)

    SHIPPING DIMENSIONS (ORIGINAL PACKAGING)

    220mm (h) x 550mm (w) x 520mm (d)

    MAINS INPUT MAINS FUSE

    2A Anti Surge (AC 100-120V ) 1.2A Anti Surge (AC 220-240V) 50/60 Hz

    MAX. POWER CONSUMPTION

    100Watts
